Barnes & Noble Commack

58 Veterans Memorial Hwy · 10,171 sq ft · Rev. 0 drawings

12takeoff groups

10drawing sheets

0/12groups reviewed

0changed from reference

Saved in this browser

Source: completed EBM takeoff

Calibrate before measuring

Start with a takeoff group. Count devices or calibrate a view and trace its route. No external AI service connected.

STANDARD ASSEMBLIES

Build the takeoff

Working quantity EACH

EBM reference 87.5

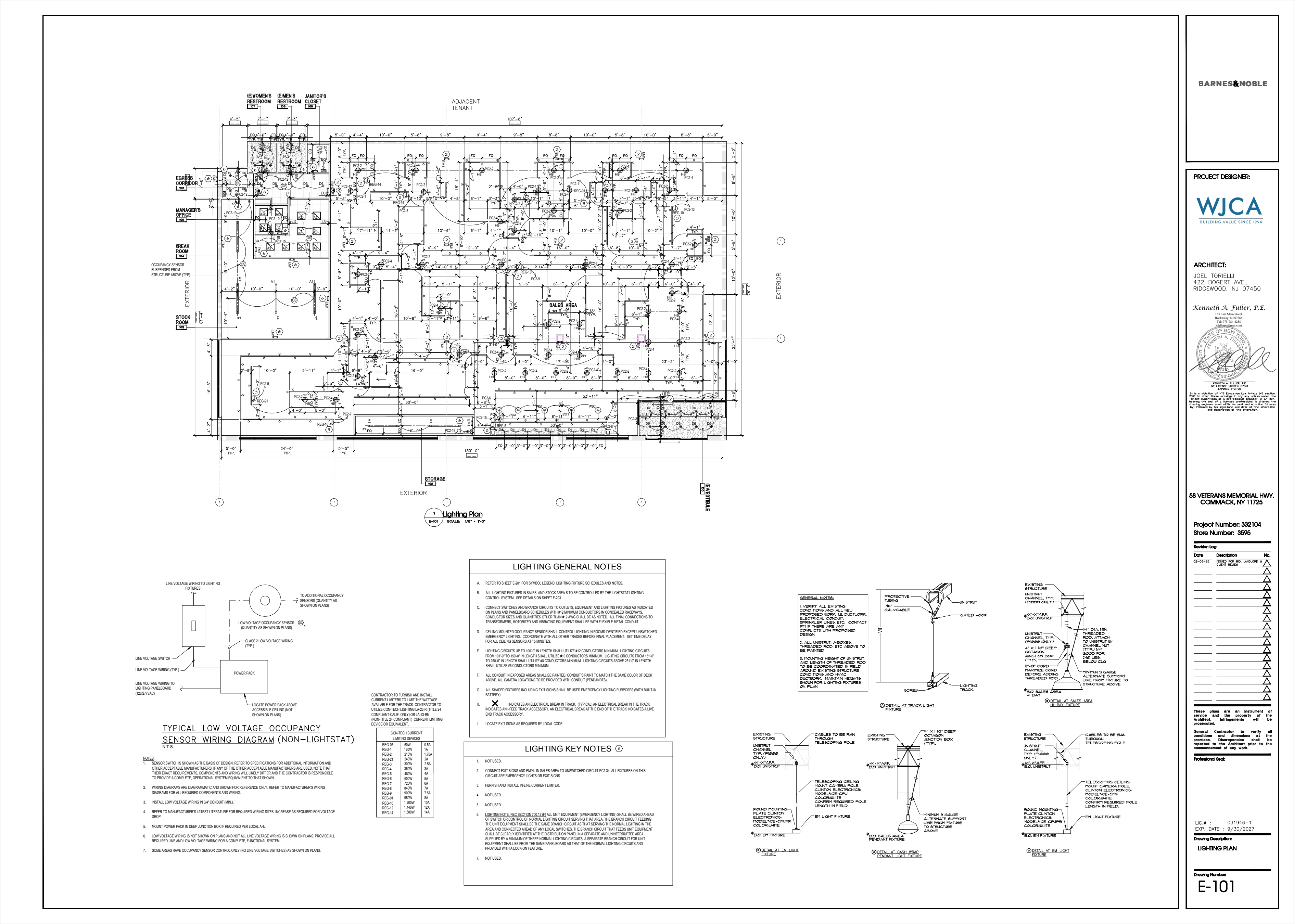

0 ft traced on E-101

12 parts

Track footage ÷ 8 gives section equivalents. Proportional to the audit quantities. Fixed fittings and allowances need estimator review.

8' Track SectionTRACK

87.5

Medium Track Fixture5219

262.5

Seismic wire5257

262.5

4" Square Box w-3/0 RingA7331 · subtotal, parts below

17.5

4" Square Box (1/2 & 3/4 KO's)2469

17.5

4" Square-3/0 Plaster Ring-1/2"D4891

17.5

Red Wirenuts (10-18 guage)6133

52.5

6X1/4" Pan Head Tapping Screw7123

6'-12/2 MC Fixture Whip (field assembled)A7348 · subtotal, parts below

17.5

Red Wirenuts (10-18 guage)6133

52.5

3/8" MC/BX Connector2858

Flexible Conduit Hanger (Caddy KX)5300

17.5

12/2 Aluminum Clad MC Cable Solid2801

105

Unistrut (Deep)5932

700

Review is your acknowledgement, not an automated accuracy certification.
